Firm Bailey Bridge Components Bracing Vertical Frame For TR / QR

Brand Name : Great Wall

Model Number : CB100 and CB200

Certification : ISO9001, BV,SGS,CCIC,CNAS,FORM E,CO,CE

Place of Origin : China

MOQ : According to the order

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50,000 Tons per year

Delivery Time : According to the order

Surface Protection : Alkyd Painted or hot dip galvanized

advantage : fast delivery;easy to install

Contact Now

Bailey Bridge Frame

Frames are used to connect the panels togeter;

For connecting the trusses of the first and second row. For dual-row single-deck design, install one brace horizontally on the superface center of each truss (or Reinforced chord member). For dual-row dual-deck design, besides one brace installed on the superface, one more brace should be installed on the rear end montant of the upper truss (one also installed on the front end montant of the first truss. For triple-row bridge, the position and number of brace to be installed shall be the same as dual-row bridge. While installing, put the four hollow sleeves on both ends into the brace holes on the two trusses, and then fasten with bracing bolts and nuts.

There are some kinds of supporting frame.

Compact-100 Frame normally:

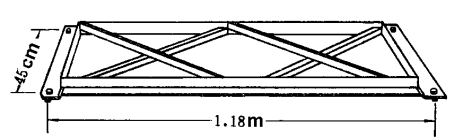

1.450 supporting frame(1270mm*540mm*80mm)
2.900 supporting frame(1270mm*900mm*80mm)

Firm Bailey Bridge Components Bracing Vertical Frame For TR / QR

Compact-200 Frame normally:

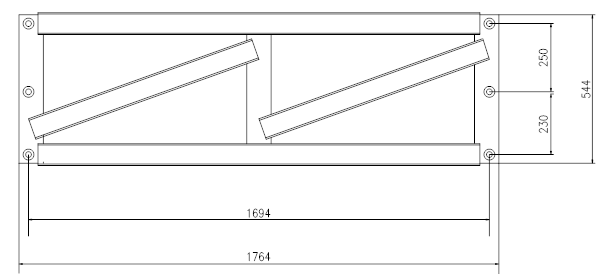

1. TR Vertical supporting frame(1764mm*560mm),

Firm Bailey Bridge Components Bracing Vertical Frame For TR / QR

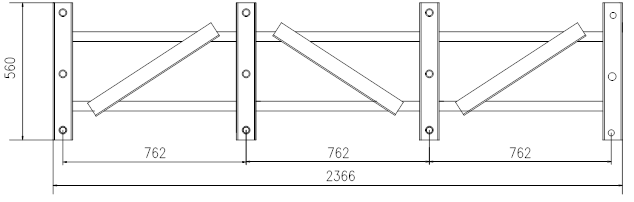

2. TR horizontal supporting frame(2366mm*560mm),

Firm Bailey Bridge Components Bracing Vertical Frame For TR / QR

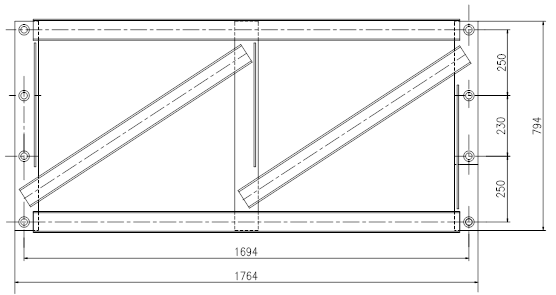

3. wide QR vertical supporting frame(1764mm*794mm),

Firm Bailey Bridge Components Bracing Vertical Frame For TR / QR

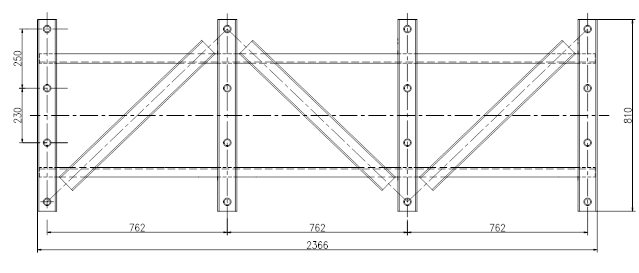

4. wide QR horizontal supporting frame(2366mm*794mm).Firm Bailey Bridge Components Bracing Vertical Frame For TR / QR
